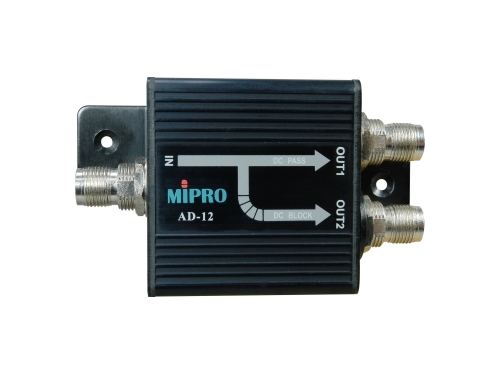

MIPRO AD-12 Pasive Antenna Combainer

Description

The AD-12 was introduced in 2005 and can either divide a RF signal into 2 signal outputs or combine 2 signals into 1 signal output. Simultaneously, it transmits bias voltage to external boosters.
It is a required device for antenna system installation.
The AD-12 adapts an isolated grounding design to avoid power noise from multi-receiver operation.

Frequency Range UHF 470 ~ 1000 MHz
Gain Attenuation 3.5 dB (typ.)
Max. RF Input Power 30 dBm (1 W)
Isolation 20 dB (typ.)
Max. Volt / Current 50 V DC / 1.5 A
Input / Output Connectors TNC female (1-input, 2-output)
System Impedance 50 Ω
Dimensions (W × H × D) 90.3 × 25 × 55.4 mm / 3.5 × 1 × 2.2 ”
Net Weight Approx. 105 g / 3.7 oz
Note Refer to actual product in the event of product description discrepancy.
